FRP Molded Grating:

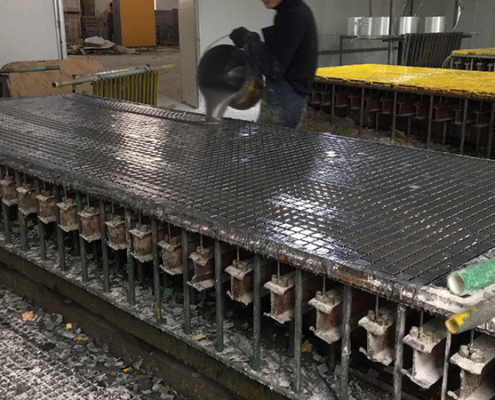

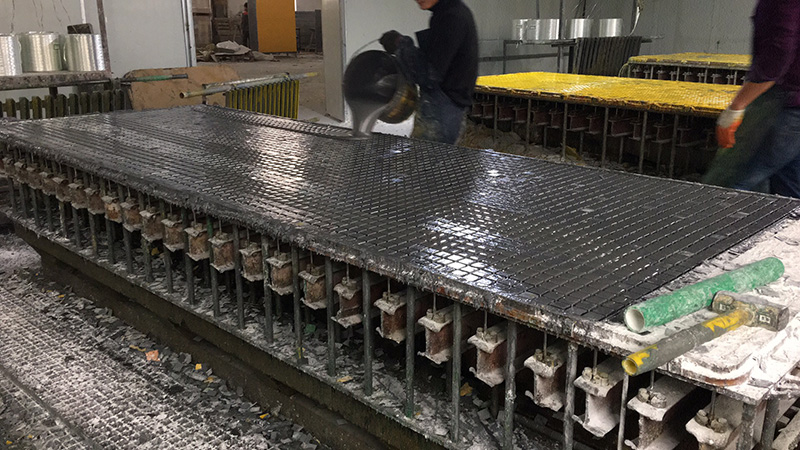

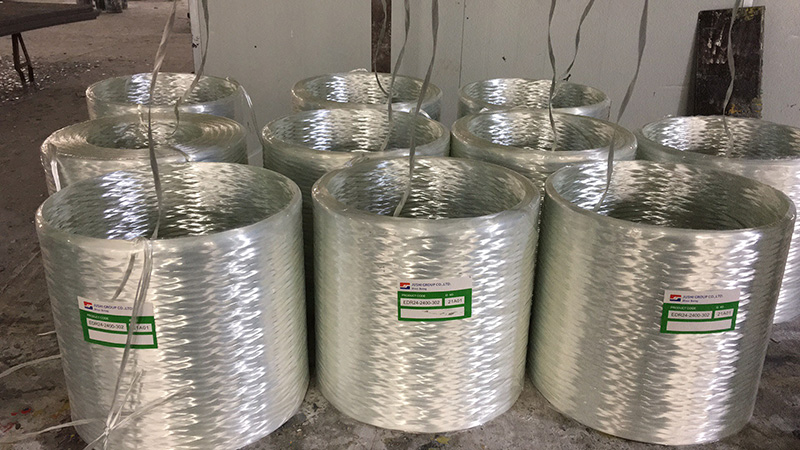

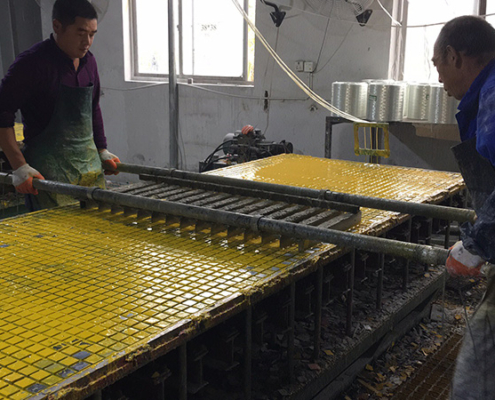

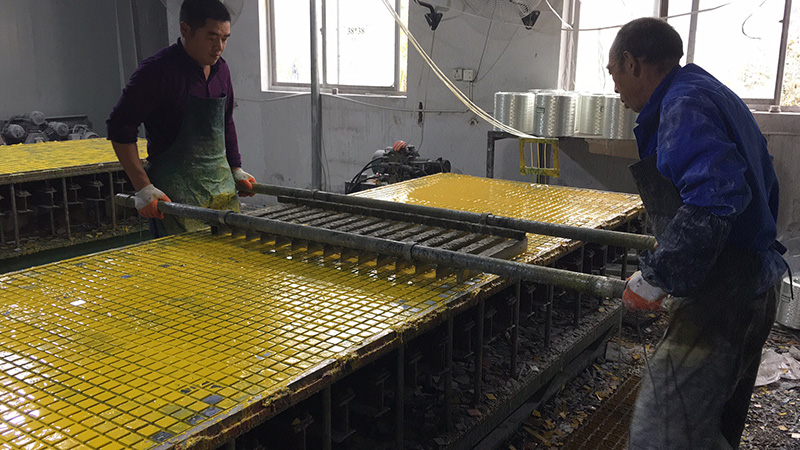

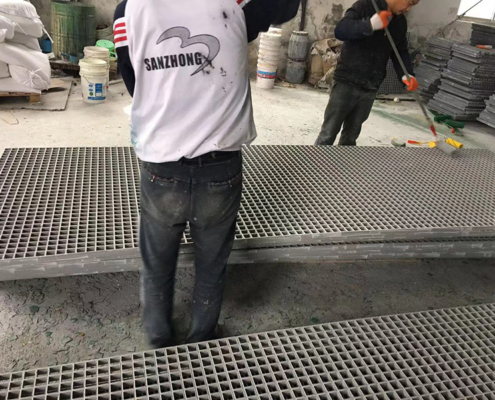

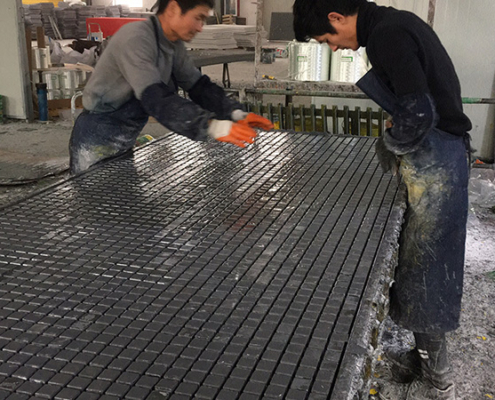

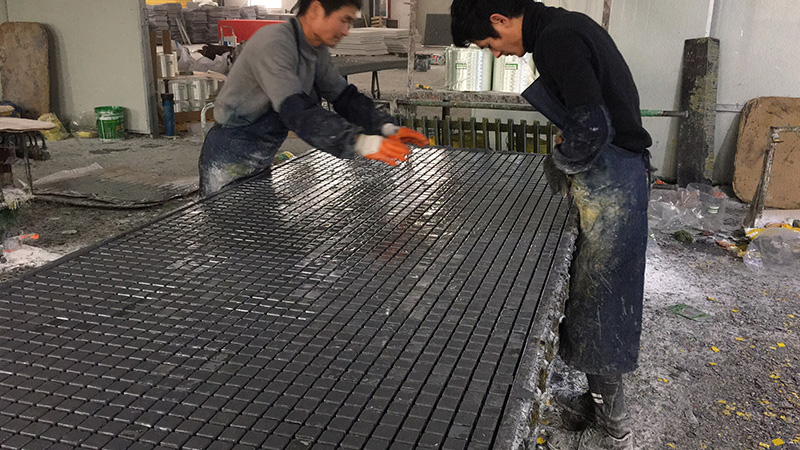

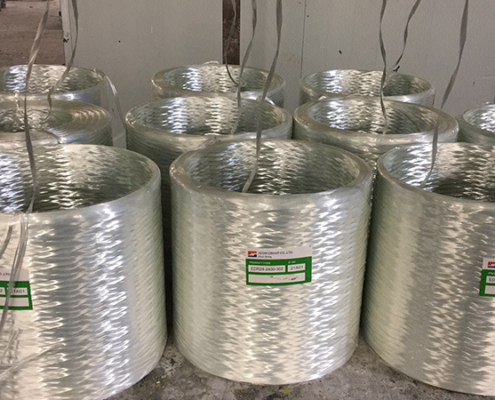

FRP(Fiberglass Reinforced Plastic) Grating is a plank shaped material cured in the matrix of unsatuaread resins including isophthalic, orthorphthalic,vinyl ester and phenolic, with reinforced frame of fiberglass roving through a special production process, with a certain rate of open meshes.

It is principally used for floors,platforms,stair treads,ramps,catwalks and trench covers.

What is FRP(Fiberglass Reinforced Plastic)Molded Grating :

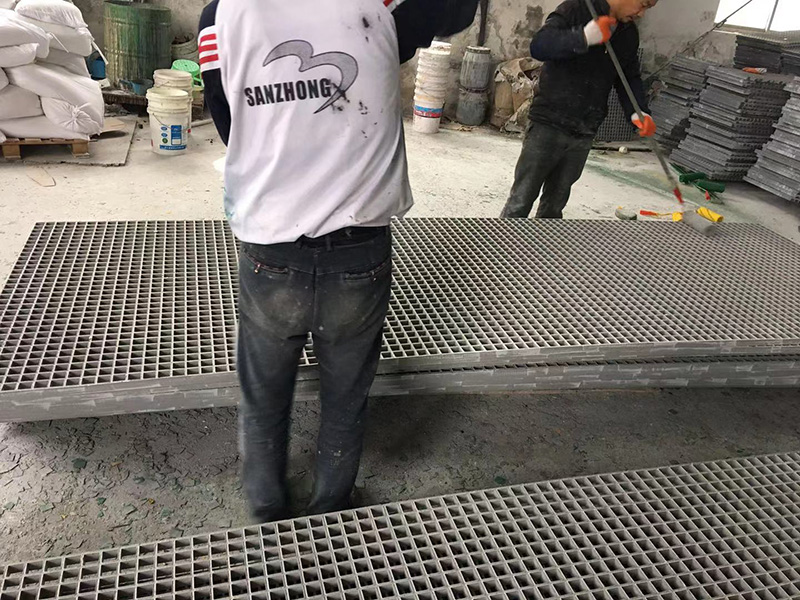

E&D FRP Grating is a moulded ,one-piece fiberglass reinforced plastic grating ,available in standard panels or custom panels made to order from drawings supplied. It is principally used for floors, platforms, stair tread, catwalks and trench covers.

-Resin system

Resin Type Resin Base Description Corrosion Resistance Application
OCR Ortho Moderate Corrosion Resistance Moderate No fire resistant requirement
OFR-25 Ortho Moderate correction resistance and Fire retardant Moderate general performance in Acid ,Alkali resistant environment
IFR-25 ISO Industrial Grade Corrosion Resistance and Fire Retardant very good good performance in Acid, Alkali resistant environment
IFGR30 ISO Food grade corrosion resistance and fire retardant very good Meat product plant and food processing factory
VEFR-10 VINYL Ester Industrial Grade Corrosion Resistance and Extra Fire Retardant very good High above normal performance in Acid ,Alkali resistant environment
VEFR-25 VINYL Ester Superior Corrosion Resistance and Fire Retardant excellent superior performance in Acid ,Alkali resistant environment
MP-5 Phenolic Resin Low smoke and superior fire resistance excellent highest requirement in cid ,Alkali resistant environment

– Features

Corrosion Resistance

Whether the grating is exposed to continuous submersion,splash,spills,fumes or gases, the high resion content of FRP Resists corrosion to a wide range of chemicals.

Fire Resistance

Flame spread rating of class1,25 or less, in accordance with the American society for teshing and materials ASTM E-84 tunnel test method.

Light Weight

FRP Grating panels are ligh in weight, they can easily handled without means of mechanical hoists or lifts.

Cost performanc

FRP Grating has a long service life with low installation costs.

High strength

FRP Grating offers load bearing capacity in both directions.

Non-Sparking

Ideally suited for installations where combustible gases may be present, FRP Grating will not cause sparking when impacked be metallic objects.

-Application

Chemical plant and metal finishing

Construction engineering ,traffic and transportation

Ocean survey, water engineering

Food plant

Printing and electronic industry

– Different type and surface of grating

01-Concave-Surface

Concave Surface

02-Mini-mesh-grating

Mini mesh grating

03-gritted-surface-grating

Gritted Surface Grating

04-Rectanular-type-polish-surface

Rectanular Type Polish Surface

05-Transparent-gritted-surface-grating

Transparent Gritted Surface Grating

06-Covered-surface-grating

Covered Surface Grating

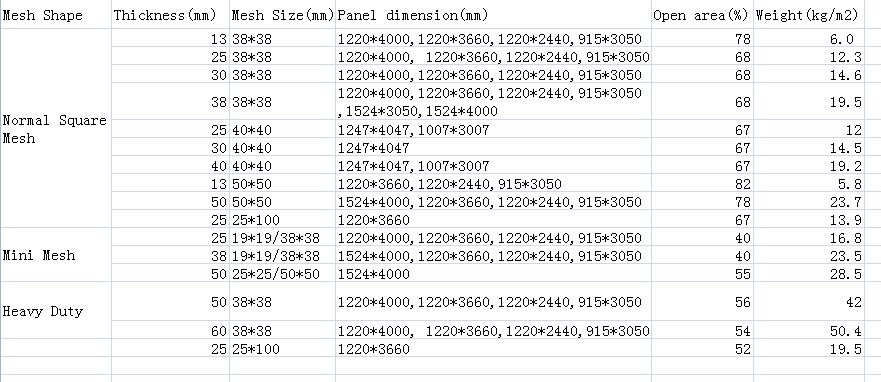

Specification of FRP Molded Gratiing

Specification of FRP Molded Gratiing

Detailed Dimensions for E&D Molded Gratings

NO.01 H13 Mesh size38*38

NO.01 H13 Mesh size38 1.Bar thickness(Top/Bottom)

5.8/5.0

2.Distance between

centers of bearing bars 38

3.Opean Area78%

4.Weight per square meter 6.0kg/m2

Standard panel size:1220*4000,1220*3660,1220*2440,915*3050

NO.02 H25 Mesh size38*38

NO.02 H25 Mesh size38 1.Bar thickness(Top/Bottom)

6.4/5.0

2.Distance between

centers of bearing bars 38

3.Opean Area:68%

4.Weight per square meter12.3kg/m2

Standard panel size:1220*4000, 1220*3660,1220*2440,915*3050

NO.03 H30 Mesh size38*38

NO.03 H30 Mesh size38 1.Bar thickness(Top/Bottom)

6.5/5.0

2.Distance between

centers of bearing bars 38

3.Opean Area:68%

4.Weight per square meter14.6kg/m2

Standard panel size:1220*4000,1220*3660,1220*2440,915*3050

NO.04 H38 Mesh size38*38

NO.04 H38 Mesh size38 1.Bar thickness(Top/Bottom)

7.0/5.0

2.Distance between

centers of bearing bars 38

3.Opean Area:68%

4.Weight per square meter19.5kg/m2

Standard panel size:1220*4000,1220*3660,1220*2440,915*3050,1524*3050,1524*4000

NO.05 H25 Mesh size40*40

NO.05 H25 Mesh size40 1.Bar thickness(Top/Bottom)

6.4/5.0

2.Distance between

centers of bearing bars 40

3.Opean Area:67%

4.Weight per square meter12kg/m2

Standard panel size:1247*4047,1007*3007

NO.06 H30 Mesh size40*40

NO.06 H30 Mesh size40 1.Bar thickness(Top/Bottom)

6.5/5.0

2.Distance between

centers of bearing bars 40

3.Opean Area:67%

4.Weight per square meter14.5kg/m2

Standard panel size:1247*4047

NO.07 H40 Mesh size40*40

NO.07 H40 Mesh size40 1.Bar thickness(Top/Bottom)

7.0/5.0

2.Distance between

centers of bearing bars 40

3.Opean Area:67%

4.Weight per square meter19.2kg/m2

Standard panel size:1247*4047,1007*3007

NO.08 H13 Mesh size50*50

NO.08 H13 Mesh size50 1.Bar thickness(Top/Bottom)

7.0/6.0

2.Distance between

centers of bearing bars 50

3.Opean Area:82%

4.Weight per square meter5.8kg/m2

Standard panel size:1220*3660,1220*2440,915*3050

NO.09 H50 Mesh size50*50

NO.09 H50 Mesh size50 1.Bar thickness(Top/Bottom)

8.0/6.0

2.Distance between

centers of bearing bars 50

3.Opean Area:78%

4.Weight per square meter23.7kg/m2

Standard panel size:1524*4000,1220*3660,1220*2440,915*3050

NO.10 H25 Mesh size25*100

NO.10 H25 Mesh size25 1.Bar thickness(Top/Bottom)

6.5/5.0

2.Distance between

centers of bearing bars25

3.Opean Area:67%

4.Weight per square meter13.9kg/m2

Standard panel size: 1220*3660

NO.11 H25Mesh size19*19/38*38

NO.11 H25Mesh size19 1.Bar thickness(Top/Bottom)

6.5/5.0

2.Distance between

centers of bearing bars 19

3.Opean Area:40%

4.Weight per square meter16.8kg/m2

Standard panel size:1220*4000,1220*3660,1220*2440,915*3050

NO.12H38Mesh size19*19/38*38

NO.12H38Mesh size19 1.Bar thickness(Top/Bottom)

7.0/5.0

2.Distance between

centers of bearing bars 19

3.Opean Area:40%

4.Weight per square meter23.5kg/m2

Standard panel size:1524*4000,1220*3660,1220*2440,915*3050

NO.13 H50Mesh size25*25/50*50

NO.13 H50Mesh size25 1.Bar thickness(Top/Bottom)

8.0/6.0

2.Distance between

centers of bearing bars 25

3.Opean Area:55%

4.Weight per square meter28.5kg/m2

Standard panel size:1524*4000

NO.14 H50 Mesh size38*38   Heavy Duty

NO.14 H50 Mesh size3 1.Bar thickness(Top/Bottom)

11.0/9.0

2.Distance between

centers of bearing bars 38

3.Opean Area:56%

4.Weight per square meter42kg/m2

Standard panel size:1220*4000,1 220*3660,1220*2440,915*3050

NO.15 H60 Mesh size38*38  Heavy Duty

NO.15 H60 Mesh size38 1.Bar thickness(Top/Bottom)

11.5/9.0

2.Distance between

centers of bearing bars 38

3.Opean Area:54%

4.Weight per square meter50.4kg/m2

Standard panel size:1220*4000, 1220*3660,1220*2440,915*3050

NO.16 H25 Mesh size25*100 Heavy Duty

NO.16 H25 Mesh size25 1.Bar thickness(Top/Bottom)

9.5/8.0

2.Distance between

centers of bearing bars25

3.Opean Area:52%

4.Weight per square meter19.5kg/m2

Standard panel size: 1220*3660

E&D Pultruded Grating

-Production process

E&D FRP pultrusion gratings are panels with open soace,ammembled, through specially designed process,with “I” or “T” shaped bearing bars and interlocked with solid rods or tubes,all pultruded

-Features

  • Corrosion resistant

Resisting to acid, alkali, organic solvents, salts and many other gases and liquid media, FRP gratings have incomparable superiority in the field of preservation. According to the practical application requirements, orthophthalic, isophthalic and vinyl resins can be chosen as matrix material FRP gratings are widely used in all the aspects of chemical preservation, and they are replacing carbon steel, stainless steel, wood and non-ferrous metals.

  • Lightweight & high strength

Because FRP grating is a composite of resins and fiber glasses, its density is less than 2 kg/dm3, which is 1/4 of the steel density and 2/3 of aluminum density. FRP grating’s strength is ten times of RPVC, and its absolute strength level is higher than aluminum and ordinary steel. Its lightweight can greatly reduce the basic support, so as to reduce the material costs of the project. FRP gratings are easy to cut and install, no flame and large lifting equipment is needed, only need a small number of manual and electric tools, so as to reduce the installation costs.

  • Ergonomic

Workers would get tired after a long time working on solid concrete or steel platforms, but FRP gratings can ease the strain their backs, feet and legs, so as to increase their comfort and work efficiency.

  • Good thermal performance

FRP grating has low thermal conductivity – 1.25 – 1.67kj/(m.h.k) at room temperature, which is only 1/100 – 1/1000 of metals, therefore it is an excellent insulating material. In the case of instantaneous ultra-high temperature, FRP gratings are ideal for thermal protection and ablation resistance.

  • Inflaming retarding

The flame propagation rate of ordinary flame retardant grating does not exceed 25, and the flame propagation rate of superb flame retardant vinyl grating does not exceed 10. The oxygen index is not less than 28.

  • Security with good electrical properties

FRP grating has excellent electrical insulation properties as an insulator, and it can still protect good dielectric properties under high-frequency. Due to the good microwave permeability, FRP gratings have been widely used in radar and radome. Due to the no breakdown under 10KV voltage and no electromagnetic, FRP gratings can be used on equipment sensitive to magnetism. And the special structure of FRP grating has the features of anti-slip and anti-fatigue.

  • Uniform color

The color can be arbitrarily chosen, according to the request of customers, improving the workplace environment.

  • Outstanding designability

A variety of structured FRP gratings can be designed to meet the customers’ requirements, letting the products have good integrity. And the materials can fully satisfy the product performance, such as corrosion resistant, instantaneous high temperature resistant, high tensile strength and good dielectric property.

  • Good manufacturability

One-step molding process, prominent economic effect.

  • Have good overall economic efficiency
  • Anti-aging

More than twenty years of service lives.
